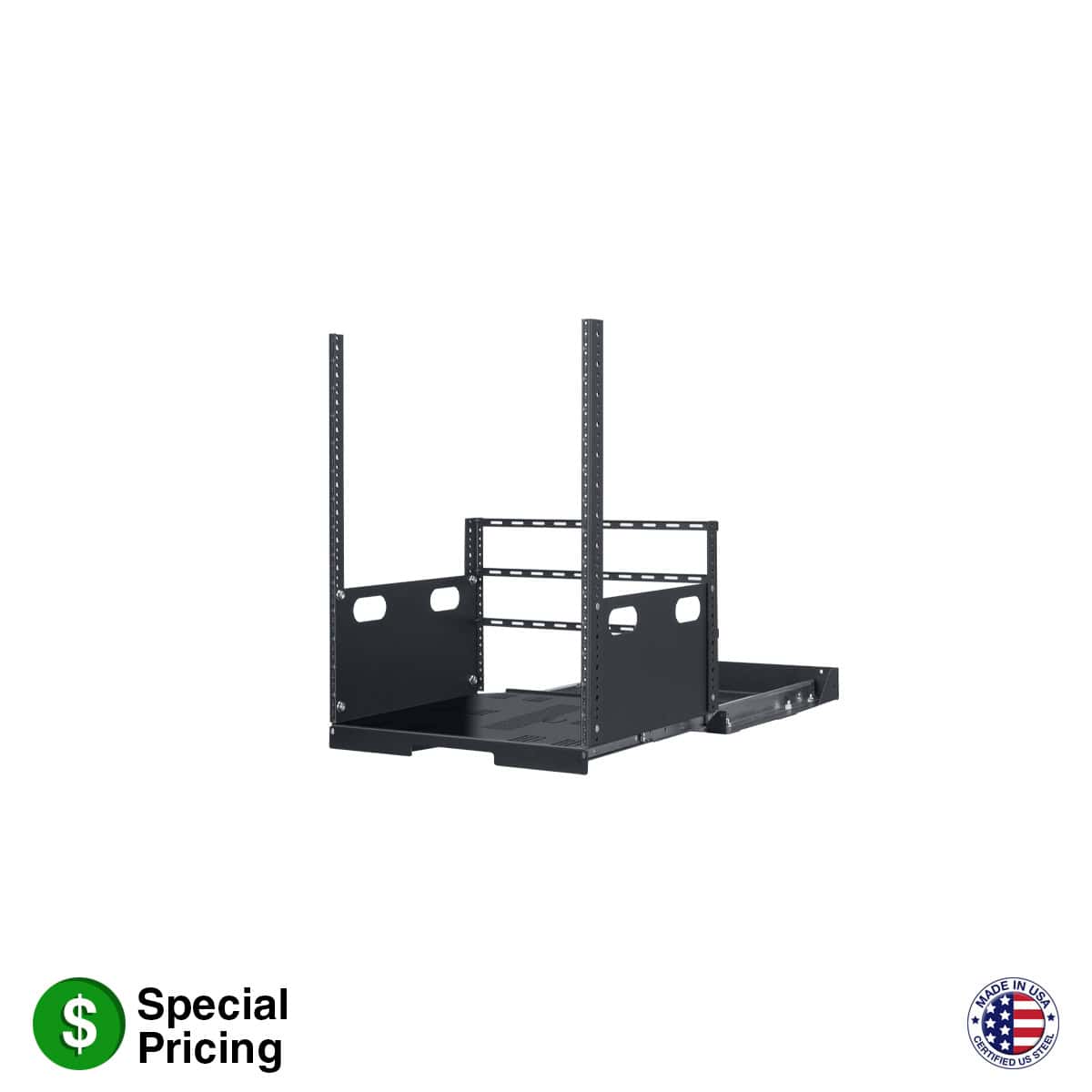

LPOR2 SERIES | LPOR2-1419 | 14U x 19"D Pull-Out AV Rack

DELIVERY within the United Kingdom
INSTALLATION
TRAINING
IN STOCK

PURCHASE PRICE

$ 98.25

Product form

Lease Calculator

11-gauge steel corner post mounting rails tapped 10-32 (14U front, 7U rear) 14-gauge steel base Two bottom rail slides (for loads to 125 lbs.) Three cable lacing bars Front panel to secure rack in rolled-back position Smooth black powder epoxy finish Ships unassembled (two cartons) Rack Space: 14U Height: 26.45 in. Width: 19.13 in. Depth: 19.49 in. Load Capacity: 125 lbs. Spec Sheet: 1655-LPOR21419 CAD drawings: LPOR2-1419 Installation: 18181E-LPOR TAA Compliant EIA/TIA Compliant Certified U.S. Steel Made in U.S.A. (BAA) The rack for built-in use shall be Lowell Model LPOR2-1419 which shall measure 19.13”W x 19.49”D x 26.45”H and provide 14 rack units of panel space (14U front rails, 7U rear rails). The rack shall be made with certified U.S. steel and feature a 14-gauge steel base and 11-gauge steel mounting rails tapped 10-32. The base shall feature two heavy duty rails which shall allow the rack to slide forward while supporting a load up to 125 lbs. The rack shall include three cable lacing bars in the rear and a front panel which shall mount with screws to secure rack in roll-back position. The rack shall have a smooth black powder epoxy finish and ship unassembled in two cartons. Thermal management Cable management Zero space shelf: LPTR-NS (limited usage, see spec sheet)

FEATURES

TECHNICAL DETAILS

DRINK CHOICES

WARRANTY

PDF

LPOR2 SERIES | LPOR2-1419 | 14U x 19"D Pull-Out AV Rack
