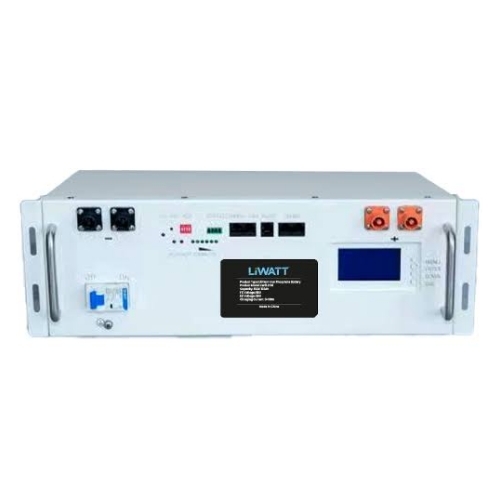

Liwatt 51.2V 100AH Lithium Iron Battery

DELIVERY within the United Kingdom
INSTALLATION
TRAINING
IN STOCK

PURCHASE PRICE

$ 97.70

Product form

Lease Calculator

Item Battery Usage Others Voltage 48 Volt Capacity 100Ah Maintenance Sealed Weight 113 Kg Application Home Energy Storage Industrial Storage Solar Inverter Function of Battery OVP, UVP, OTP, OCP, SCP Self-management on charging and discharging, single cell balancing function Supports communication with equipment over RS485 Intelligent design, supports battery upgrade over RS232 LCD displays battery information Electrical Characteristics Nominal Voltage: 51.2V Nominal Capacity: 100Ah Energy: 5120Wh Internal Resistance: 100mΩ without BMS Cycle Life: 4000 cycles, 80% DOD Design Life: 15 years at 25℃ Self-Discharge 30 days: 3% at35℃ Efficiency of Charge: 98% Efficiency of Discharge: 100% at 0.2C, 96% at 1C Charge Charge Voltage 56-57.6V Charge Mode 0.2C to 57.6V, then 57.6V charge current to 0.02C (CC/CV Max. Charge Current 100A Discharge Max. Continuous Discharge Current: 100A Discharge Cut-off Voltage: 5V±0.5V Environmental Charge Temperature Range: -20℃~60℃ extra heating mechanism under 0℃ Discharge Temperature Range: -20~60℃ reduced capacity under 0℃ Optimum Operation Temperature: 10℃~35℃ Storage Temperature: -20℃~55℃, 85% Relative Humidity Water Dust Resistance: IP20 Mechanical Max. Weight: 43 Kg Dimension W x D x H: 442 x 450 x 156mm Min. Gravimetric Specific energy: 119Wh/kg Terminal: M6 x 2 for positive and M6 x 2 for negative Communication Parallel Communication: RS485 Battery with Equipment: RS485 Battery Debugging Communication: RS232 SOC Light: 6 x LED

FEATURES

TECHNICAL DETAILS

DRINK CHOICES

WARRANTY

PDF

Liwatt 51.2V 100AH Lithium Iron Battery
